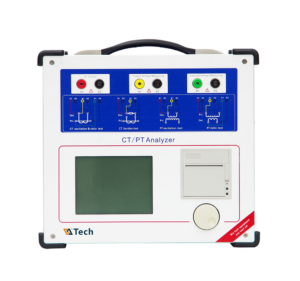

VACTP200P
The VACTP200P CT/PT analyzer tests protection CTs, measuring CTs, TP-class CTs and inductive PTs per IEC 61869-2/-3 and…
- CT ratio 1–30000 · ±0.05%
- PT ratio 1–10000 · ±0.05%
- Knee-point voltage up to 40
Protection & Measurement
Secondary Test Instruments
Relay test systems and instrument-transformer analyzers for protection commissioning, routine maintenance and post-fault investigation in transmission and distribution substations.
The range runs from a portable three-phase unit through to a six-phase system with an embedded PC for stand-alone testing of differential, distance and busbar schemes — plus an all-in-one CT/PT analyzer covering protection, measuring and TP-class current transformers and inductive voltage transformers to IEC 61869-2/-3 and IEEE/ANSI C57.13.
3
models
Manufactured in Shenzhen, China
Secondary Test Instruments models

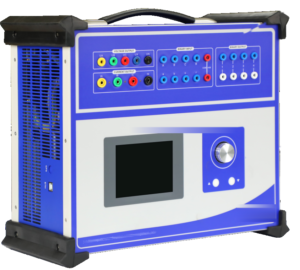

VAE-430
The VAE-430 is a three-phase protection relay test system providing 3×0–40 A AC current, 4×0–120 V AC voltage…
- Current output 3×0–40 A AC
- Single-phase current 1×0–120 A
- Voltage output 4×0–120 V AC / 1×0–240 V
VAE-660
The VAE-660 is a six-phase protection relay test system providing 6×0–30 A AC current, 6×0–120 V AC voltage…
- Current output 6×0–30 A AC
- Single-phase current 1×0–180 A
- Voltage output 6×0–120 V AC / 3×0–240 V
Not sure which model fits your test?
Send us the cable length, voltage class or transformer rating you need to test and our application engineers will come back with a model and a configuration.
